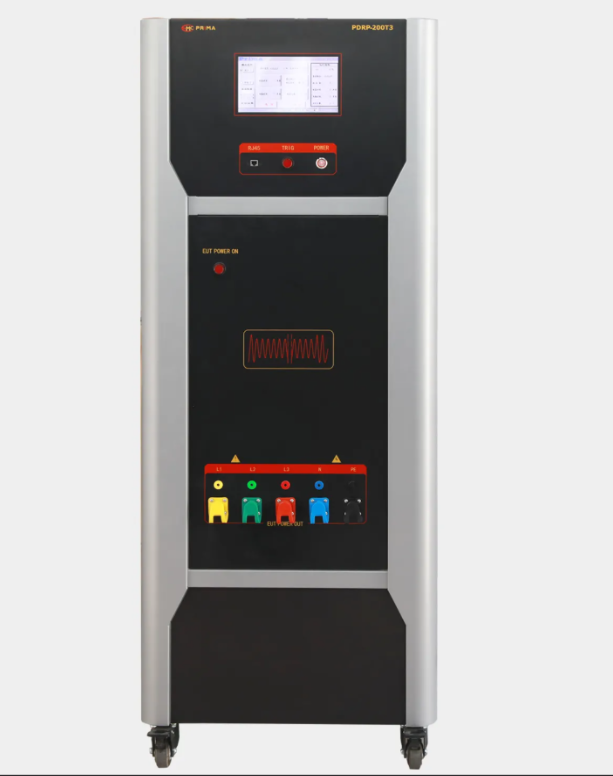

High Power Dips CDN PDRP-200T3
PDRP-200T3 high-voltage and high-power cycle drop coupling and decoupling network can meet the AC power supply cycle drop test and realize automatic three-phase coupling and decoupling function. The maximum load capacity of EUT is AC380 V 200A three-phase five-wire. Other EUT voltage and current levels can be customized according to customer requirements.

Details

​PDRP-200T3 high-voltage and high-power cycle drop coupling and decoupling network can meet the AC power supply cycle drop test and realize automatic three-phase coupling and decoupling function. The maximum load capacity of EUT is AC380 V 200A three-phase five-wire. Other EUT voltage and current levels can be customized according to customer requirements.



1.  EUT AC load capacity AC 380 V 200 A three-phase five-wire

2.  High-power aviation plug, safe and reliable

3.  Built-in international standard grade parameters

4.  Maximum voltage change can reach 100%

5.  0.1-inch color touch screen operation

6.  Pulse injection phase angle asynchronous or 0-360° free setting

7.  Built-in RJ45 interface, optional measurement and control software for remote control

8.  IEC61000-4-11/GB/T17626.11





Product model

​PDRP-200T3

Voltage change range

0%~120%

Duration

0.5~6000.0 cycle

Resolution

0.5 cycle

Switching phase setting

0~359°or asynchronous

Voltage change repetition

1~60000c

Interval time

0.5~6000.0 cycle

Resolution

0.5 cycle

Trigger mode

Automatic, internal trigger

Decoupling Load capacity

3-phase AC 380V/200A

Working power

AC 220V ±10% 50/60Hz

Standard Drop Voltage

0%、40%、70%、80%、120%

Voltage sag or drop

Phase resolution
