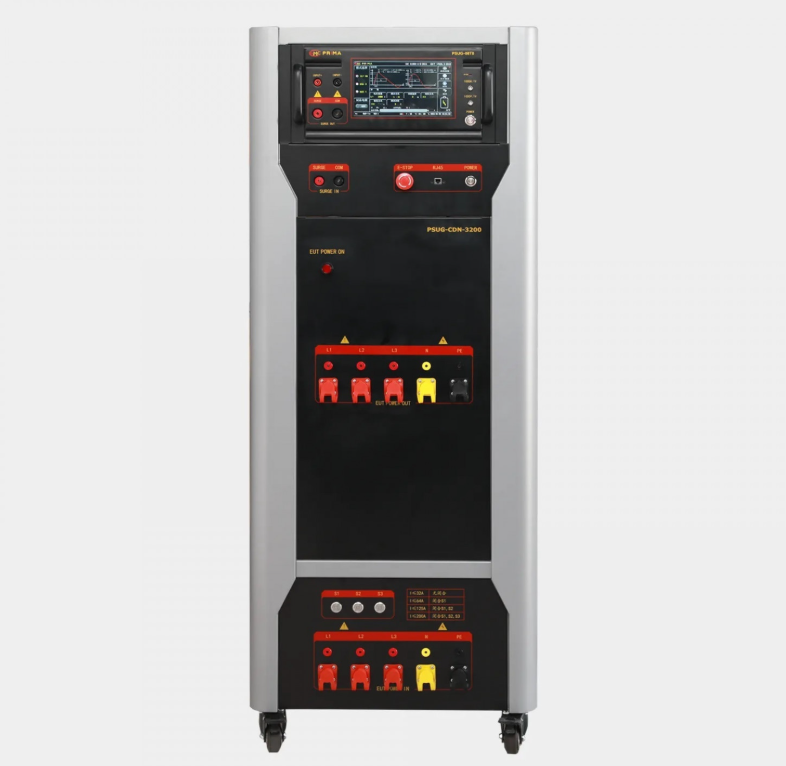

High Power Surge CDN PSUG-CDN-3100/3200-690
PSUG-CDN-3100/3200-690 high-voltage and high-power lightning surge coupling and decoupling network can meet the AC/DC power supply lightning surge test and realize automatic three-phase coupling and decoupling function. The maximum load capacity of EUT is AC 690 V 100 A/200A and DC 1000 V 100A/200 A three-phase five-wire. Other EUT voltage and current levels can be customized according to customer requirements.

Details

PSUG-CDN-3100/3200-690 high-voltage and high-power lightning surge coupling and decoupling network can meet the AC/DC power supply lightning surge test and realize automatic three-phase coupling and decoupling function. The maximum load capacity of EUT is AC 690 V 100 A/200A and DC 1000 V 100A/200 A three-phase five-wire. Other EUT voltage and current levels can be customized according to customer requirements.



1.  EUT DC load capacity DC 1000 V 100A/200 A

2.  EUT AC load capacity AC 690 V 100A/200 A three-phase five-wire

3.  Overcurrent protection

4.  Surge injection phase angle asynchronous or 0~359° freely set

5.  urge test mode full-speed automatic switching, no manual operation required

6.  Built-in RJ45 interface, optional measurement and control software for remote control



standard

    IEC/EN60664

    GB/T17626.5/IEC61000-4-5

    ITU K20

    ANSIC62.41/45



PSUG-CDN-3100/3200-690

Open circuit voltage wave

200 V ~ 8000 V± 10%

 Voltage resolution

1 V

Short circuit current wave

100 A~4000A ±10%

Output polarity

+,-,+/-,-/+

 Source Output impedance

2 Ω

Step voltage

0~8000V

interval time

5s~9999s

 test times

1c~60000c

phase synchronization

0°~359°(50 HZ or 60 HZ)

trigger mode

Manual, external, interval trigger

Surge voltage parameters under open circuit conditions

Coupling impedance (wavefront time 1.2μs±30%)

18uF(L-L)

9uF+10Ω(L-PE)



Peak voltage

Duration

 Peak voltage

Duration

Rated current≤16A

±10%

50μs+10μs/-10μs

±10%

50μs+10μs/-25μs

16A<Rated current≤32A

±10%

50μs+10μs/-15μs

±10%

50μs+10μs/-30μs

32A<Rated current≤63A

±10%

50μs+10μs/-20μs

﹢10%/-15%

50μs+10μs/-35μs

63A<Rated current≤125A

±10%

50μs+10μs/-25μs

﹢10%/-20%

50μs+10μs/-40μs

125A<Rated current≤200A

±10%

50μs+10μs/-30μs

﹢10%/-25%

50μs+10μs/-45μs

Surge current parameters under short-circuit conditions Duration

Coupling impedance (wavefront time 1.2μs±30%)

18uF(L-L)

9uF+10Ω(L-N)

Wavefront time

Tf=1.25*Tr=8μs±20%

Tf=1.25*Tr=2.5μs±30%

Duration

Td=1.18*Tw=20μs±20%

Td=1.04*Tw=25μs±30%
