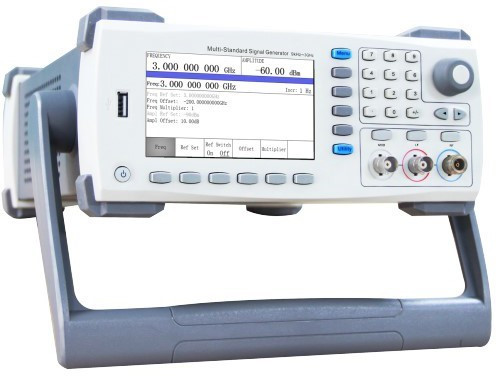

- SG3000 Series Multi-standard Signal Generator
＠ Typical output power from -120dBm to +10dBm
＠ Supports a variety of general-purpose digital modulation formats, B-type built-in IQ modulator
＠ Supports various analog modulation AM/FM/ФM, the highest modulation rate of type A can reach 1MHz
＠ Support pulse modulation, minimum pulse width 100ns
＠ Supports linear frequency modulation function to simulate radar signal output
＠ Allow external input IF signal as an upconverter
＠ Provide internal modulation sources: sine wave, square wave, triangle wave, sawtooth wave
＠ Standard USB/LAN interface, providing standard SCPI command sets
The SG3000 series multi-standard signal generator has excellent performance and portable characteristics. It has various working modes such as CW signal, analog modulation, pulse modulation, digital modulation, frequency and amplitude scanning and frequency conversion.
The product is suitable for teaching and research, product development, production and maintenance. The rich logic hardware interface and widescreen LCD display allow users to carry out various control operations. The complete standard SCPI command set and current USB and LAN interfaces bring great convenience to users remote control and secondary development.
|
Model |
SG3015A |
SG3030A/SG3060A |
SG3030B/SG3060B |
||
|
Frequency |
|||||
|
Freq Range |
9kHz~1.5GHz |
SG1030A/B：9kHz~3.0GHz SG1060A/B：9kHz~6.0GHz |
|||
|
Freq Resolution |
0.23Hz |
||||
|
Internal Benchmark |
|
||||
|
Benchmark Freq |
10MHz |
||||
|
Temp Stability |
±0.5ppm（options：±5 ppb） |
||||
|
Internal Reference Output |
Typical value |
10MHz，+2dBm |
|||
|
Spectrum Purity |
|||||
|
Harmonic Wave |
Typical value |
≤-30dBc |
|||
|
Non-harmonic Wave |
Typical value |
≤-50dBc |
|||
|
Single Sideband Phase Noise |
f = 300MHz |
-105dBc/Hz@10kHz；-115dBc/Hz@100kHz |
|||
|
f = 1GHz |
-93dBc/Hz@10kHz；-105dBc/Hz@100kHz |
||||
|
Amplitude |
|||||||||
|
Output power range |
9kHz~500 kHz |
-120dBm~0dBm |
|||||||
|
500kHz~6 GHz |
-120dBm~+10dBm |
||||||||
|
Power Accuracy |
|
±1.0dB（Typical value） |
|||||||
|
Resolution |
|
0.1dB |
|||||||
|
Amplitude/Frequency Scan |
|||||||||
|
Sweep Mode |
|
Step scan, list scan |
|||||||
|
Trigger Mode |
|
Automatic, external trigger |
|||||||
|
Internal Modulation Source (LF) |
|||||||||
|
Waveform |
|
Sine wave, square wave, triangle wave, sawtooth wave |
|||||||
|
Frequency Range |
Sine wave |
0.1Hz~500kHz |
|||||||
|
Triangle wave, sawtooth wave |
0.1Hz~100kHz |
||||||||
|
Square wave |
0.1Hz~20kHz |
||||||||
|
Modulation |
|||||||||
|
Analog modulation (AM/FM/ФM), supporting internal and external modulation sources |
|||||||||
|
Amplitude Modulation （AM） |
Modulation depth |
0％~100％ |
0％~100％ |
||||||
|
Modulation rate |
20Hz~1MHz |
1Hz ~25kHz |
|||||||
|
Frequency Modulation （FM） |
Maximum frequency offset |
5MHz |
5MHz |
||||||
|
Modulation rate |
20Hz~1MHz |
1Hz ~25kHz |
|||||||
|
Phase Modulation（ФM） |
Modulation Phase |
0 o ~360 o |
0 o ~360 o |
||||||
|
Modulation rate |
20Hz~1MHz |
1Hz ~25kHz |
|||||||
|
Digital modulation, supporting internal and external modulation sources |
|||||||||
|
IQ Modulator |
|
—— |
Yes |
||||||
|
Internal Source |
|
ASK/2FSK/4FSK/8FSK /2PSK/4PSK/8PSK |
Supports current digital modulation |
||||||
|
External Source |
|
Modulation sequence |
Arb mode (IQ data) |
||||||
|
Modulation Rate |
|
1Hz~1MHz |
10kHz~20MHz |
||||||
|
Phase Modulation |
|||||||||
|
On-off Ratio |
|
≥ 70dB |
||
|
Pulse Period |
|
200ns~160s |
||
|
Pulse Width |
|
100ns~85s |
||
|
Linear Frequency Modulation |
||||
|
Scanning Range |
Max range |
20MHz |
Type B does not support |
|
|
Scanning Rate |
|
20ns ~ 20ms |
||
|
RF Upconversion |
||||
|
Input IF Range |
|
25MHz~300MHz |
||
|
Input Signal Amplitude |
|
-50dBm ~ 0dBm |
||
|
Output Signal Frequency |
|
301MHz~1.5 GHz |
SG3030A/B：301MHz~3.0GHz SG3060A/B：301MHz~6.0GHz |
|
|
Output Signal Amplitude |
|
-120dBm ~ +10dBm |
||
