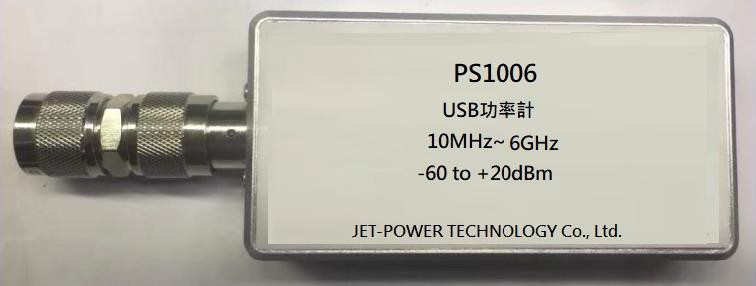

PS1006 Power meter
USB power meter is used for microwave RF component and system power measurement. It has large power and frequency measurement range and high power measurement accuracy. USB power meter (PS1006) is suitable for frequency range from 10MHz to 6GHz. The range is -60dBm~+20dBm.
want to ask

Electrical characteristics： VCC= +5V，TA=+25℃



Minimum value

Typical value

Maximum

Operating Voltage

+4.5V

+5V

+5.5V

Working current



300mA



Frequency Range

10MHz



6GHz

Minimum measured power



-60dBm



Maximum measured power



+20dBm



Power accuracy



±0.5dB



Size（mm）

160*55*25
