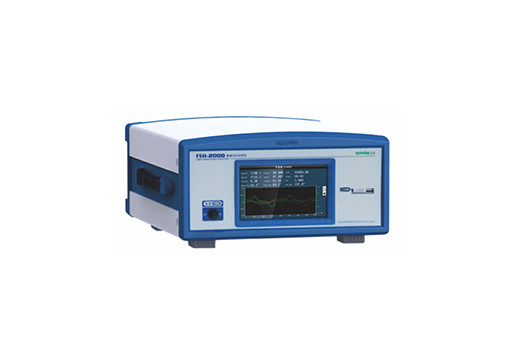

FSH-2000 FLASH LIGHT ANALYZER is based on the rapid photometric sampling technology and it can be used for real-time light waveform recording and measurement for transient light source like flash, car xenon lamp, warning lights, etc. it Can also be used for photometric measurement for stable light source. Instrument configured 7 inch touch screen, the instrument can display light waveforms and the results of the analysis directly. In addition, the USB interface, can realize the connection between the instrument and computer or remove the test data to U disk.
Parameter
|
Model |
FSH-2000 |
|
Measurement function |
Illuminance 、recording waveform |
|
Photoelectric Sensor |
Silicon Photometer head(preamplifier) |
|
V(λ) Mis-match |
National standard |
|
Measuring Range |
illuminance: 0.01lx~200klx; |
|
Mesduring Accuracy |
Illuminance: ±4%（according to JJG245-2005） |
|
Sampling rate |
4MS/s |
|
Trigger mode |
External trigger synchronous sampling and optical signal trigger sampling |
|
Display mode |
7 inch touch screen |
|
Communication |
USB，Special software |
|
Power |
AC 220V or customized |
|
Standard accessories |
MCU, photometer head, software |
Application
- Flash lights and other transient light flash frequency, and the photometric value test.
2.Common illumination, light intensity test applications
