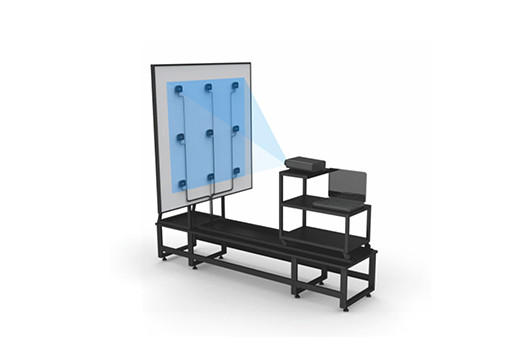

POPA-1300B optical performance analysis system for projector is always applied to measure parameters including illumination, chromaticity coordinates, CCT, CRI, spectral power distribution and others of the projector in a specific plane with 9 points. The luminance and color uniformity of the whole plane are feedback through software to evaluate the optical characteristics of the projector.

Main features:

Adopted patented technology, the system can measure illuminance and color parameters remotely. There is no spectral mismatch error and high accuracy measurement.

The performance is much better than that of the traditional illuminance meter and color filter type colorimeter.

9 points spectral measurements have better consistency.

The system has strong data processing capabilities which can analyzes illuminance, chromaticity and spectral data of 9 channels at the same time.

Through spectral measurement, color parameters such as CCT and CRI can be evaluated to better evaluate the color reduction effect of projectors.

Achieve laboratory-grade cosine performance is ideal for projector and other measurement applications with higher cosine performance requirements

DUT can be moved on slide suitable for the measurement of the long focus projector and short focus projector.

The software can set different criteria for projectors and can also call them arbitrarily.
