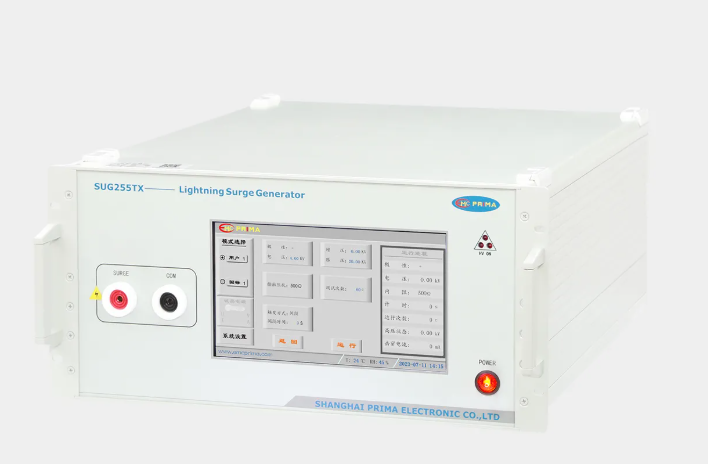

Impulse Voltage Generator SUG255TX
SUG255TX is specially designed for the requirements of electromagnetic compatibility - surge (impact) (SUG) immunity test, and is used to evaluate the performance of power lines and internal connecting lines of electrical and electronic equipment when subjected to high-energy transient interference caused by switches and natural lightning strikes.
want to ask

Details

1.    Positive and negative polarity can be switched freely

2.    One-touch switch between Chinese and English modes

3.    10.1-inch color touch screen operation

4.    The maximum test voltage can reach 20.0kV

5.    Imported program-controlled high-voltage power supply, stable

6.    Automatic switching of test mode in all gears

7.    Built-in RJ45 and RS232 interfaces, remote control (optional)



standard

    IEC60255-5

    GB14711

    GB/T17626.5/IEC61000-4-5

    IEC/EN 61010







Model

SUG255TX

Impulse voltage

1kV～20.0kV± 10%

Voltage resolution

0.1V

 Rise time

1.2μs ±30%

 Duration

50μs  ±20%

Output voltage polarity

+   -   +/-    -/+

Output impedance

500Ω

 Step voltage

0～2.5KV

Interval Time

3s～9999s

Test times

1～9999c

Energy storage Energy

0.5J ±10%

Failure detection

Build-in

Test product breakdown detection

Build-in

Breakdown current

50mA～1200mA

Trigger mode

Interval trigger
