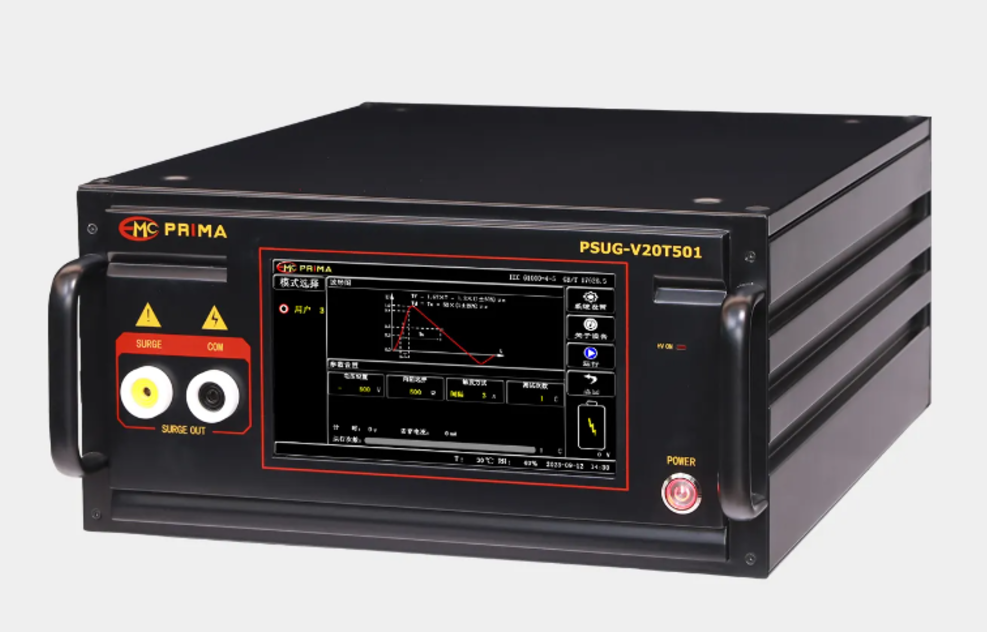

Impulse Voltage Generator PSUG-V20T501
The impulse voltage generator SUG255TX is specially designed for the requirements of electronic and electrical products under voltage impulse. It is used to provide an evaluation basis for evaluating the performance of equipment when the power line and ground are subjected to high voltage impulse transient interference.
want to ask

Details

1.      Positive and negative polarity can be switched freely

2.      One-touch switch between Chinese and English modes

3.      10.1-inch color touch screen operation

4.      The maximum test voltage can reach 20.0kV

5.      Imported program-controlled high-voltage power supply, stable

6.      Automatic switching of test mode in all gears

7.      Built-in RJ45 and RS232 interfaces, remote control (optional)



standards

    IEC60255-5

    GB14711

    GB/T17626.5/IEC61000-4-5

    IEC/EN 61010



Model

PSUG-V20T501

Impulse voltage

0.3kV～20.0kV± 10%

Voltage resolution

0.1V

 Rise time

1.2μs ±30%

 Duration

50μs  ±20%

Output voltage polarity

+   -   +/-    -/+

Output impedance

500Ω

 Step voltage

0～2.5KV

Interval Time

3s～9999s

Test times

1～9999c

Energy storage Energy

0.5J ±10%

Failure detection

Build-in

Test product breakdown detection

Build-in

Breakdown current

50mA～1200mA

Trigger mode

Interval trigger
