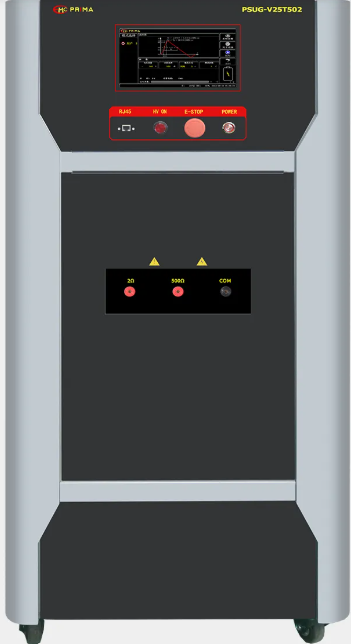

Impulse Voltage Generator PSUG-V25T502
The performance of impulse voltage generator products fully meets or exceeds the relevant requirements of international standard IEC60255 and national standard GBT16917.1, and is mainly used to evaluate the pulse withstand voltage and anti-interference capabilities of electronic devices. Whether in terms of performance indicators or quality reliability, it is an electromagnetic compatibility test equipment that can be comparable to similar foreign products.
want to ask

Details



1.    Meet IEC60060-1and EC60664-1

2.    Positive and negative polarity can be switched freely

3.    One-touch switch between Chinese and English modes

4.    10.1-inch color touch screen operation

5.    The maximum test voltage can reach 20.0kV

6.    Imported program-controlled high-voltage power supply, stable

7.    Automatic switching of test mode in all gears

8.    Built-in RJ45 and RS232 interfaces, remote control (optional)



standards

    IEC60060-1

    IEC60664-1

    IEC60255

    GB/T16917.1

    IEC62477-1:2012+A1:2016

    GB14711



Model

PSUG-V20T502

Impulse voltage

0.5～25KV

 Step voltage

100V

 Rise time

1.2μs±30%

Duration

50μs±20%

Output voltage polarity

+   -   +/-    -/+

Trigger model

Automatic/manual, external trigger

Output impedance

500/2Ω

Test times

1—9999C

Interval Time

10—9999S
