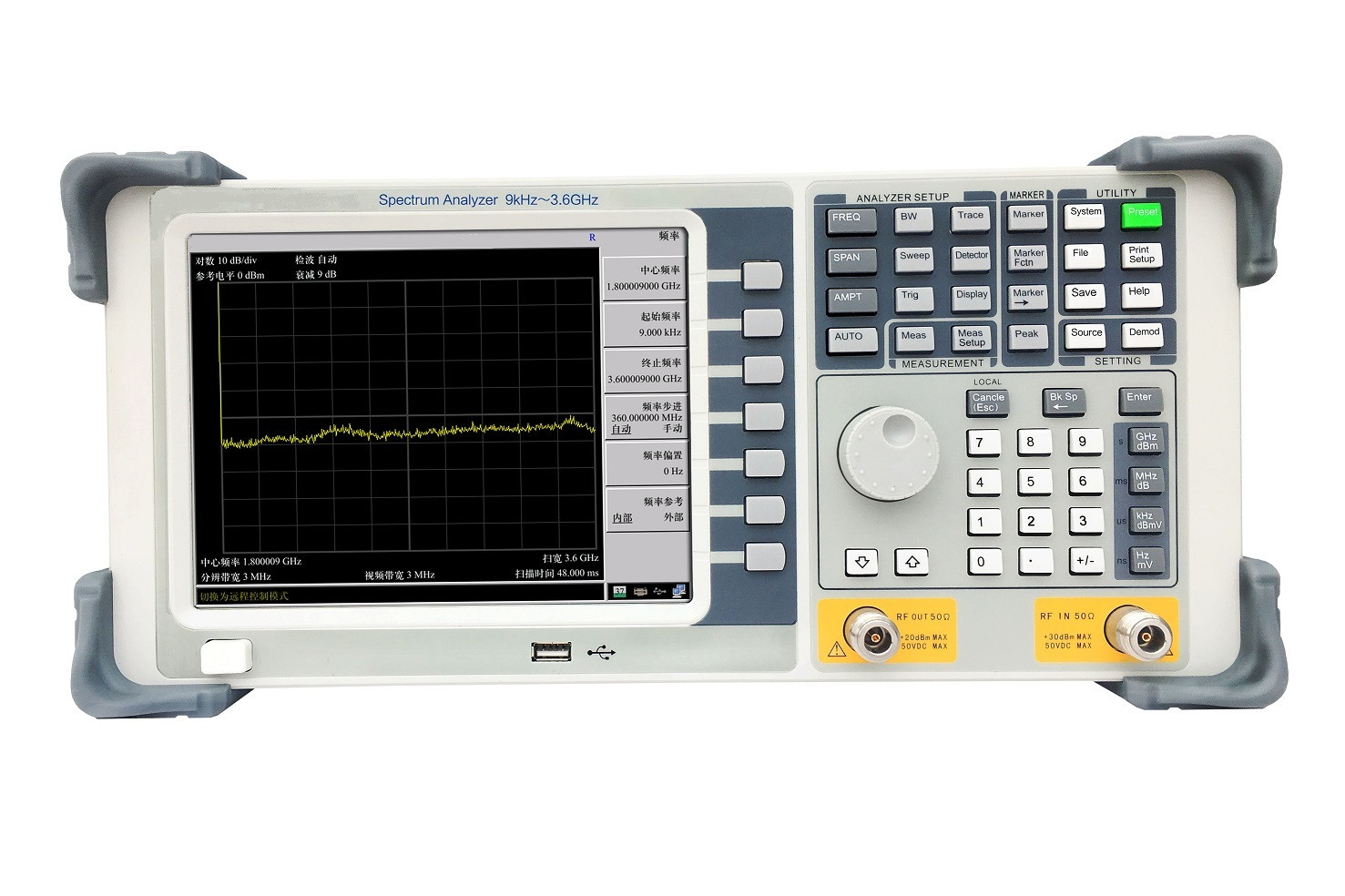

- SA3031 Spectrum Analyzer
Product Features
- l Frequency Range：9kHz~3.6GHz
- l Resolution Bandwidth:1Hz~3MHz，optimum sensitivity precede -160dBm
- l Patented dual source function, tracking source/ independent source arbitrary switching
- l Waterfall spectrum、modulate quality analysis、audio demodulation and other general& extended functions
- l Field strength measurement、frequency detection testing、S11 & S21、Channel measurement、frequency counting and more professional options
- l Compact all-metal structure, superior shielding performance, and EMC characteristics
|
Technical Indicators |
||||||||||||||
|
Conditions |
Preheat for 30 minutes while the instrument is in the calibration cycle and has performed self-calibration |
|||||||||||||
|
Model |
SA3031 |
|||||||||||||
|
Frequency Range |
9kHz~3.6GHz |
|||||||||||||
|
Freq Reading Accuracy |
±（Freq standard reading× Freq reference accuracy +1%× sweep width +10%×RBW+0.5×[ sweep width /（ scan spot -1）]+1Hz） |
|||||||||||||
|
Internal Benchmark（10MHz） |
Aging rate |
<1ppm/ year |
||||||||||||
|
Temp Drift |
<0.5ppm （15℃ to 35℃） |
|||||||||||||
|
Resolution Bandwidth（RBW） |
||||||||||||||
|
Range(<10Hz as options) |
1Hz to 500kHz（continuous stepping from 1 to 10）、1MHz、3MHz |
|||||||||||||
|
Selectivity（60dB/3dB） |
RBW≤500kHz |
<5：1 typical value（digital implement，close to Gaussian shape） |
||||||||||||
|
Accuracy |
<5% typical value |
|||||||||||||
|
Video Bandwidth（VBW） |
10Hz to 3MHz |
|||||||||||||
|
Display Average Noise Level（1Hz resolution bandwidth，RF attenuator 0dB） |
||||||||||||||
|
Pre-amplifier Off |
100kHz to 1MHz <-100dBm-3×(f/100kHz)dB 1MHz to 10MHz <-130dBm 10MHz to 1GHz <-135dBm 1GHz to 3.6GHz <-130dBm |
|||||||||||||
|
Pre-amplifier On |
100kHz to 1MHz <-120dBm-3×(f/100kHz)dB 1MHz to 10MHz <-150dBm 10MHz to 1GHz <-155dBm 1GHz to 3.6GHz <-150dBm |
|||||||||||||
|
Phase Noise |
||||||||||||||
|
fc=500MHz |
Frequency offset 30kHz -90dBc/Hz |
|||||||||||||
|
Frequency offset 100kHz -100dBc/Hz |
||||||||||||||
|
Frequency offset 1MHz -110dBc/Hz |
||||||||||||||
|
Note: typical fc=500MHz RBW≤1kHz，sampling detection，average trace ≥10
|
||||||||||||||
|
Sweep Time |
||||||||||||||
|
Non-Zero Sweep Width |
3ms to 3000s |
|||||||||||||
|
Zero Sweep Width |
1ms to 3000s |
|||||||||||||
|
Sweep Mode |
Continuous，single |
|||||||||||||
|
Trigger |
||||||||||||||
|
Trigger Source |
Free，video，external |
|||||||||||||
|
External Trigger Level |
5V TTL level，nominal value |
|||||||||||||
|
Frequency Counter |
|
|||||||||||||
|
Counter Resolution |
1Hz、10Hz、100Hz、1kHz |
|||||||||||||
|
Counter Uncertainty |
Freq reading×Freq reference accuracy+ counter resolution |
|||||||||||||
|
Amplitude Accuracy（20℃ to 30℃） |
||||||||||||||
|
Comprehensive Amplitude Accuracy（90%） |
Input signal range from 0dBm to -50dBm |
±1.5dB |
||||||||||||
|
Amplitude |
||||||||||||||
|
Measurement Range fc≥10MHz |
Display average noise level to +27dBm |
|||||||||||||
|
Maximum Safe Input Level |
Average Continuous Power |
+27dBm |
||||||||||||
|
Maximum DC Input Voltage |
50Vdc |
|||||||||||||
|
Input Attenuator Range |
0 to 39dB， stepping as 3dB |
|||||||||||||
|
1dB Compression Spot |
+7dBm |
|||||||||||||
|
Spurious and Residual Responses |
||||||||||||||
|
TOI（Third-order Distortion） |
>30MHz |
+10dBm |
||||||||||||
|
SHI（Second-order Distortion) |
>10MHz |
+30dBm |
||||||||||||
|
Input Related Spurious Signals |
<-60dBc |
|||||||||||||
|
Residual Responses |
<-85dBm |
|||||||||||||
|
Tracking Signal Source(Options) |
||||||||||||||
|
Frequency Range |
100kHz to 3.6GHz |
|||||||||||||
|
Output Power |
-30dBm to 0dBm 1dB stepping |
|||||||||||||
|
Output Flatness |
Track source（100kHz to 3.6GHz） ±3dB |
|||||||||||||
|
Independent source（150MHz to 3.6GHz） ±3dB |
||||||||||||||
|
Input/ Output |
||||||||||||||
|
RF Input/ Output |
N-type negative（50Ω） |
|||||||||||||
|
USB |
Device port：USB 1.1 B connector Host port：USB 2.0 A connector |
|||||||||||||
|
LAN |
10/100 Base-T，RJ-45 connector |
|||||||||||||
|
RS232 |
9-pin D-SUB（positive） |
|||||||||||||
|
|
|
|||||||||||||
|
Reference Input/ Output |
10MHz，BNC negative |
Input power 0dBm to +10dBm |
||||||||||||
|
Output power 0dBm±2dB |
||||||||||||||
|
VGA |
800*600，60Hz，15-pin D-SUB（negative） |
|||||||||||||
|
External Trigger Input |
5V TTL level（±10V，100mA maximum） |
|||||||||||||
|
FM/AM Audio Demodulation |
Earphone jack |
|||||||||||||
|
Common Parameter |
||||||||||||||
|
Display |
LED back-light，8.4-inch TFT-LCD |
|||||||||||||
|
Maximum Weight |
6.5kg |
|||||||||||||
|
Size（not include feet） |
390（W）×182（H）×230（D）mm |
|||||||||||||
|
Working Temperature |
0℃ to 40℃ |
|||||||||||||
|
Storage Temperature |
-30℃ to +70℃ |
|||||||||||||
|
Power Supply |
Input Voltage Range |
100V to 240V |
||||||||||||
|
AC Freq Range |
40Hz to 60Hz |
|||||||||||||
|
Power Consumption |
Maximum 30W |
|||||||||||||
