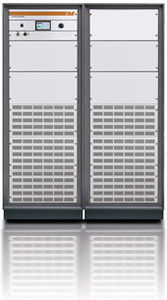

3000W1000B RF Power Amplifier
3000 Watt 80 - 1000 MHz
編 號:3000W1000B
RATED OUTPUT POWER: 2800 watts minimum
INPUT FOR RATED OUTPUT: 1.0 milliwatt maximum
POWER OUTPUT @ 3 dB compression:
Nominal 3000 watts, 2600 watts min up to 500
MHz, 2400 watts from 500 to 1000 MHz
POWER OUTPUT @ 1 dB compression:
Nominal 2500 watts, 2250 watts min up to 500 MHz;
1850 watts min from 500 to 1000 MHz
FLATNESS:±2.0 dB maximum; ±1.5 dB typical
FREQUENCY RESPONSE:80–1000 MHz instantane-ously
GAIN (at maximum setting): 64.8 dB minimum
GAIN ADJUSTMENT (continuous range):25 dB mini-mum
INPUT IMPEDANCE:50 ohms, VSWR 1.5:1 maximum;
1.3:1 typical
OUTPUT IMPEDANCE:50 ohms nominal
