500 – 2700 MHz / 100 Watts-S0527BP100
100 Watts-S0527BP100
我要詢問

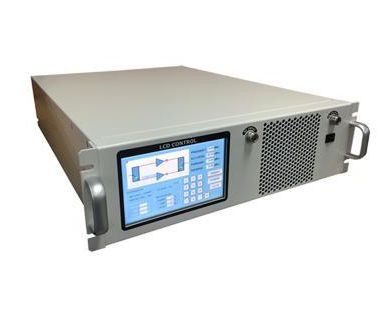

S0527BP100 500 – 2700 MHz / 100 Watts
ELECTRICAL SPECIFICATIONS @ 220 VAC, 25°C, 50Ω System

Parameter                                          Note                                                Specifications
Operating Frequency BW 500 – 2700MHz
Output Power PSAT Min. 100Watt
Power Gain GP Min. 50dB
Power Gain Flatness DGP Max. ±1.5dB
Input Power for Rated PSAT PIN Typ. 0dBm
Input Impedance Ω 50 ohm
Input VSWR S11 Max. -10dB
Harmonics @ POUT = 100W 2nd Har Typ. -20 dBc
3rd Typ. -20 dBc
Third Order Intercept Point
2-tone IMD @ 37dBm/Tone, Δ = 1MHz		 IP3 Typ. +50 dBm
Spurious Signal Spur Max. -60dBc
Power Consumption @ Psat PD Typ. 700 Watt
Primary Power 　 200-260VAC, 50/60Hz, Single phase
MECHANICAL SPECIFICATIONS
Parameter Value Note
Dimensions, W x D x H 300 x 400 x 133.5 mm
Weight TBD kg
RF Connector Input Type-N, Female 　
RF Connector Output Type-N, Female 　
Cooling Built-in internal forced air cooling system -
ENVIRONMENTAL CHARACTERISTICS
Parameter Symbol Specifications Unit
Operating Ambient Temperature TA 0 ~ +50 °C
Non-operating Temperature TSTG -20 ~ +75 °C
PROTECTIONS & LIMITS
Parameter Specifications, Value Unit
Input RF drive level without damage +5 dBm Max
Thermal Overload 65°C shutdown 　
