"R" Series EMI Test Receivers
R Introduction to series Receivers
R series EMI receivers Meet CISPR 16-1-1 Standard,Integrated with CISPR-AVG、CISPR-RMS、QPK Detector, Under CISPR、EN、FCC、MIL and other standards for electromagnetic interference measurement,Suitable for EMI testing in Household appliances , lighting, Road vehicles, Medical and other industries. Combined with ETR software, a wealth of test selection accessories, Accurate automated testing is available . Standard spectrum analysis modules and tracking signal generators for all systems to meet the testing needs of users in different fields.
R series EMI receivers Meet CISPR 16-1-1 Standard,Integrated with CISPR-AVG、CISPR-RMS、QPK Detector, Under CISPR、EN、FCC、MIL and other standards for electromagnetic interference measurement,Suitable for EMI testing in Household appliances , lighting, Road vehicles, Medical and other industries. Combined with ETR software, a wealth of test selection accessories, Accurate automated testing is available . Standard spectrum analysis modules and tracking signal generators for all systems to meet the testing needs of users in different fields.
Conduction test

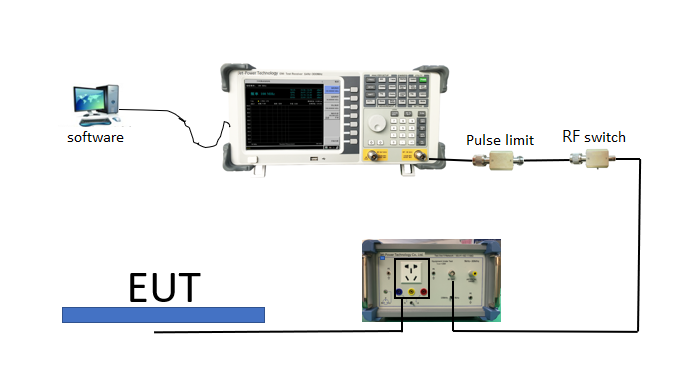

Conduction Connection diagram
@ LISN AC input power supply (AC220V) recommends the use of isolation Transformers
@ Make sure the lisn chassis is reliably grounded before testing
@ LISN L/N the RF switch dial switch in the off state before switching
- The RF switch dial switch is in the off State before the test, and the EUT is dialed to the on State when powered on
CDN Test

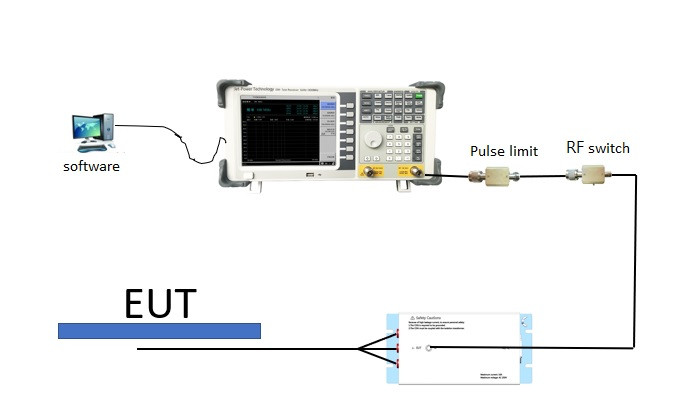

Test Connection Diagram
@ Make sure the CDN chassis is grounded before testing
@ Test environment as far as possible for electromagnetic shielding room or radio darkroom
Working mode switching
Access Spectrum analyzer operating mode via front panel operation:
【MODE】→【Spectrum analyzer】
Access EMI receiver operating mode via front panel operation:
【MODE】→【EMI Receiver】
Frequently seen problems
- The amplitude value of the receiver after long time use is small: the instrument needs metering calibration
- There is a slight deviation in the receiver load Pass test: The instrument may not be grounded or the load itself is disturbed
