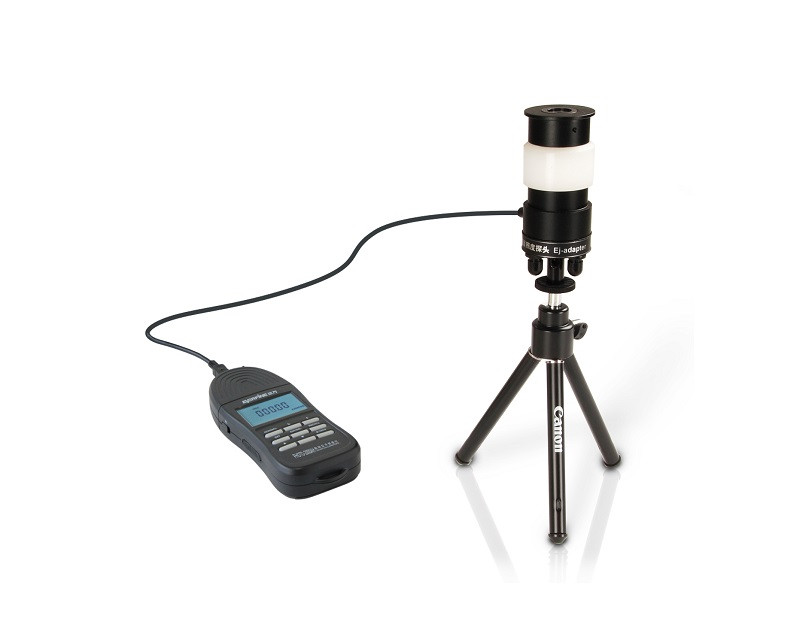

PHOTO-2000EZ Average Cylindrical Illuminance Meter offers accurate and easy measurement for full-cylindrical or half-cylindrical illuminance. Due to excellent performance such as small size, portability, low power consumption, high accuracy, and wide measuring range, it is especially widely used for field measurement in gymnasium, square, and station hall, etc.
|
Model |
PHOTO-2000EZ Full-cylinder |
PHOTO-2000EZ Half-cylinder |
|
|
Measurement function |
Illuminance、The Illuminance difference、The Illuminance ratio、Integrating time、Integrating Illuminance、The average of Illuminance |
||
|
Photoelectric sensor |
Silicon photometer head |
||
|
V(λ)Mis-match |
f1'≤5%（class 1） |
||
|
Cosine correction |
f2'≤4%（class 1） |
||
|
Sensitive area |
Full-cylinder |
Half-cylinder |
|
|
Measuring range |
0.01lx～20klx，4 level auto range switch |
||
|
Accuracy |
±4%（according to JJG245-2005） |
||
|
Communication interface |
USB（Software available separately） |
||
|
Holding function |
Holding the readings, easy to read |
||
|
Standard accessories |
MCU, photometer head, battery, bag |
||
